产品详情
product details

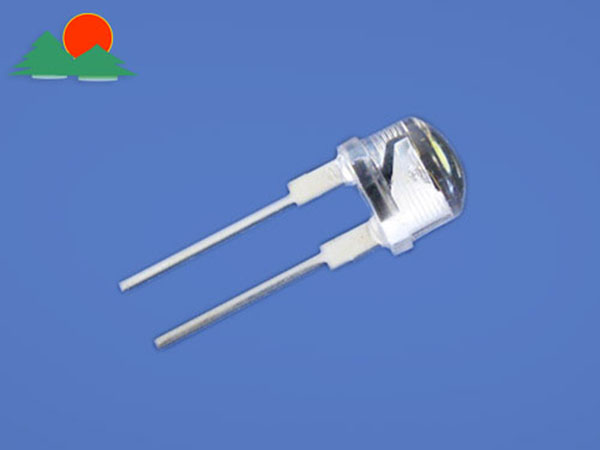

φ8草帽0.5WLED
型 号：AQ-HP0872
产品图片：
| Part Number |
Emitting Color |
λD（nm）/Tc（K） | øv（lm）@150mA | VF@150mA | Viewing Angle | |||||||||
| Min | Typ | Max | Min | Typ | Max | 2θ1/2 | ||||||||
| AQ-HRXXP0872 | 620-630 | 15 | 20 | 25 | 2.0 | 2.3 | 2.6 | 120 | ||||||
| AQ-HYXXP0872 | 585-595 | 15 | 20 | 25 | 2.0 | 2.3 | 2.6 | 120 | ||||||
| AQ-HBXXP0872 | 460-470 | 4 | 8 | 12 | 3.0 | 3.5 | 3.8 | 120 | ||||||
| AQ-HGXXP0872 | 520-530 | 15 | 20 | 30 | 3.0 | 3.5 | 3.8 | 120 | ||||||
| AQ-HWXXP0872 | 6000-7000 | 18 | 25 | 35 | 3.0 | 3.5 | 3.8 | 120 | ||||||
